Maxillo-facial surgery planning and simulation


Cleft lip and palate are among the most frequent inborn malformations. A resulting maxillary hypoplasia can be treated by distraction osteogenesis: During an operation the appropriate bony part of the midface is separated from the rest of the skull (osteotomy) and slowly moved into the ideal position by way of a distraction device (cf. Figure 1). Thus even large displacements over 20 mm can be treated effectively.

patient before operation patient with halo at end of treatment frontal view of patient
Patient before operation Patient with Halo device mounted Frontal view
Figure 1: Maxillary hypoplasia and distraction osteogenesis (photographies: Dr. Hierl)

A critical point in this procedure is osteotomy design and predictions of the resulting outcome with respect to aesthetics. Another important question is the optimal adjustment of distraction forces, as on one hand, one wants to pull as fast as possible, while at the other hand, to large stresses cause unnecessary pain for the patient. In the current clinical practice, planning is solely based on CT scans and the surgeon's experience. In this work package of GEMMS, a tool chain is developed which allows the surgeon

It therefore provides the possibility to predict and compare the outcome of different surgical treatments in silico (see Figure 2).

In line with the overall goals of GEMSS, this toolchain gives average clinicians access to the advanced simulation technology of such surgical planning tools.

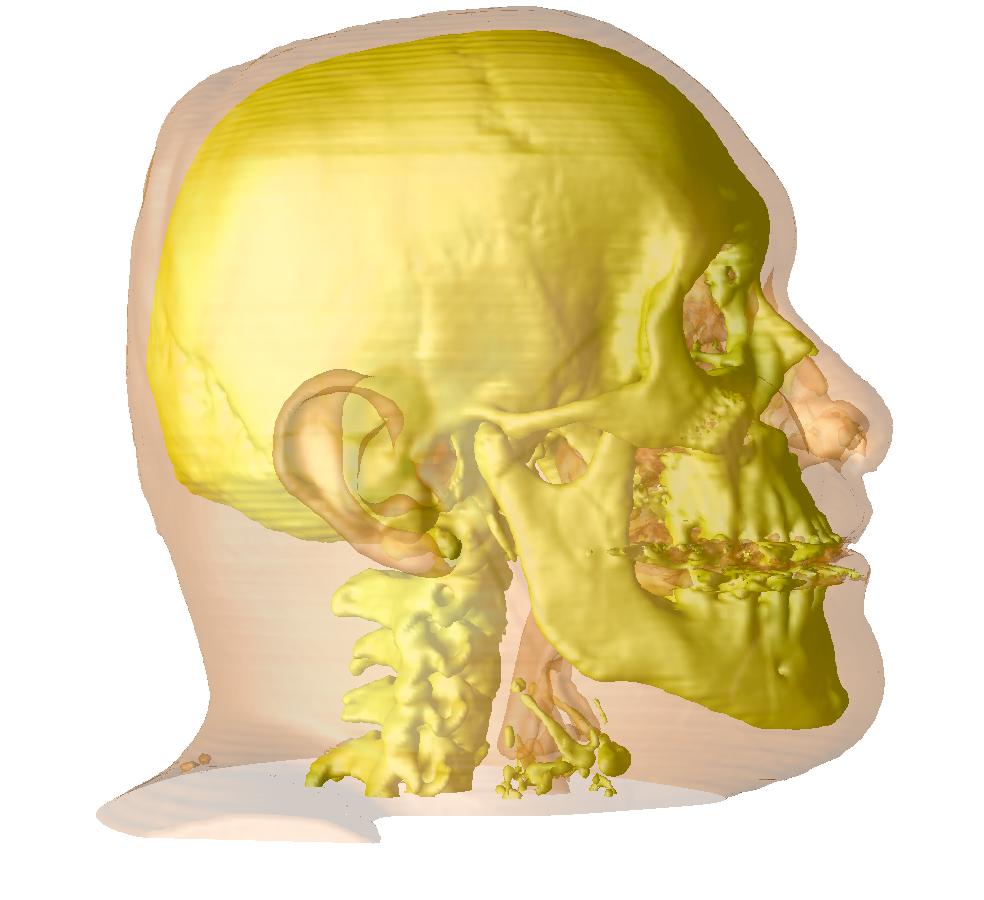

volume rendered CT volume rendered simulation result
Volume rendering of patient CT before simulation Volume rendering of simulated distraction
Figure 2. Data provided by Dr. Hierl

The surgery planning toolchain

The chain of tasks to be solved to plan and simulate a surgery operation includes the following steps, given a CT image of the patient:

We chose to use a loose coupling of components for solving the individual tasks, which results in a very flexible and extensible approach. Some of these tasks are discussed in more detail below.

Virtual osteotomy

We have built our virtual bone cutting tool on top of OpenDX, which is a very flexible visualization system with a graphic programming language and sufficient interactive power. We added some specific modules to OpenDx to realize interactive drawing of osteotomy lines on the bone surface. Demos are available for the cutting (3MB) and the distraction (2.6MB) steps in the osteotomy tool.
screenshot of cutting tool
Figure 3: Screenshot of bone cutting tool, based on OpenDX

Surface and volume mesh generation

For both surface and volume mesh generation, we use the octree-based mesh generation Vgrid and its successor Mesh&More which is a NEC inhouse development. Some of the algorithms are explained in [Berti2004].

Distraction simulation by finite elements

We use our inhouse parallel FEM code FEBiNA (Finite Elements for Bio-Numerics Applications) for simulating the distraction in maxillo-facial surgery. This code is used for linear and nonlinear FEM calculations, where nonlinear means as well geometric nonlinearity as material nonlinearity (hyperelastic, viscoelastic). Using a material model like viscoelasticity is crucial for obtaining reliable transient behavior with respect to forces [Schmidt2004]. The final result can be visualized using volume rendering (Demo (3.5MB)).

Links and references

Related research papers

(See also the GEMSS publication list.)
G. Berti: Image-based unstructured 3D mesh generation for medical applications, in proceedings of ECCOMAS 2004.
(download pdf).
J. G. Schmidt, G. Berti, J. Fingberg, J. Cao, G. Wollny: A Finite Element Based Tool Chain for the Planning and Simulation of Maxillo-Facial Surgery, in proceedings of ECCOMAS 2004.
(download pdf).


Links to research in maxillo-facial surgery simulation
